Presloped Shower Trays:
Schluter®-KERDI-SHOWER-T/-TS/-TT are sloped shower trays with integrated KERDI waterproofing. The trays are made of lightweight, expanded polystyrene (PS 40) for constructing mortar-free shower bases. Each of these prefabricated shower trays is designed to integrate with the Schluter®-KERDI-DRAIN.
Step 1:
Pick the size pre-sloped shower pan
KERDI-SHOWER-T with center drain placement
Follow links for pricing and ordering (The small commission we receive makes this site possible)
| Item No. | Dimensions | Perimeter height | Drain placement |
| KST 965/1525 | 97 cm x 152 cm – 38″ x 60″ | 29 mm – 1-1/8″ | center |
| KST 1220/1525 | 122 cm x 152 cm – 48″ x 60″ | 28 mm – 1-3/32″ | center |
| KST 1220/1830 | 122 cm x 183 cm – 48″ x 72″ | 32 mm – 1-1/4″ | center |
| KST 1525 | 152 cm x 152 cm – 60″ x 60″ | 30 mm – 1-3/16″ | center |
| KST 1830 | 183 cm x 183 cm – 72″ x 72″ | 32 mm – 1-1/4″ | center |

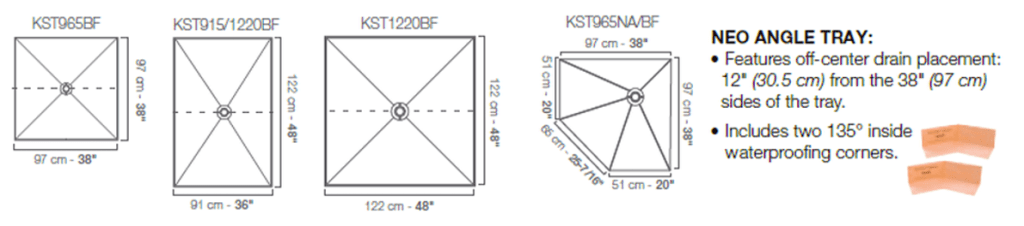

| KST 915 BF | 97 cm x 97 cm – 36″ x 36″ | 22 mm – 7/8″ | center |
| KST 915/1220 BF | 91 cm x 122 cm – 36″ x 48″ | 25 mm – 1″ | center |
| KST 1220 BF | 122 cm x 122 cm – 48″ x 48″ | 25 mm – 1″ | center |
| KST 965NA/ BF | 97 cm x 97 cm – 38″ x 38″ Neo angle | 26 mm – 1-1/32″ | off-center |
Simple Tub Replacement Pan:
KERDI-SHOWER-T good bathtub replacement:
Follow links for pricing and ordering (The small commission we receive makes this site possible)
| Item No. | Dimensions | Perimeter height | Drain placement |

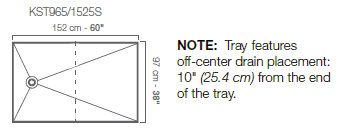

| KST 965/1525 S | 97 cm x 152 cm – 38″ x 60″ | 29 mm – 1-1/8″ | off-center |
Step 2:
Select drain and grate. For simplification, we have provided information on the drains made to connect to a 2″ PVC drain line. You can find ordering information for a vertical (most common) or horizontal drain. Drains and the drain grate are purchased as separate items.
KERDI-DRAIN – Flanges with vertical outlet
The following are called flange kits and include seals for the shower inlet water pipe and for the mixing valve and Kerdi corners.
| Material | Outlet | Item No. |
| PVC | 50 mm – 2″ | KD2 FLK PVC |
KERDI-DRAIN – Flanges with horizontal outlet
| Material | Outlet | Item No. |
| PVC | 50 mm – 2″ | KDH2 FLK PVC |
Step 3:
Select Grate:
Now you can pick the grate color of your choice. You might want to consider the plumbing fixture colors, or the profile colors when making your selection.
Follow links for pricing and ordering (The small commission we receive makes this site possible)

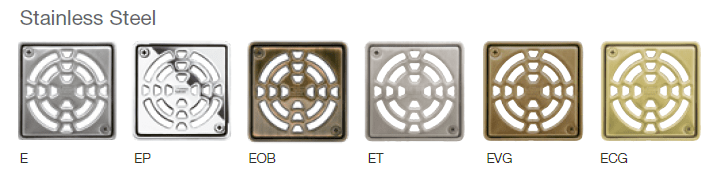

| Grate finish | Item No. |
| Stainless steel (E) | KD4 GRK E |
| Chrome (EP) | KD4 GRK EP |
| Oil-rubbed bronze (EOB) | KD4 GRK EOB |
| Nickel (ET) (Not a Schluter grate but compatible with drain) | KD4 GRK ET |
| Vintage gold (EVG) | KD4 GRK EVG |
| Classic gold (ECG) | KD4 GRK ECG |
Simple Tile Shower
