Simple Tile Shower

If your shower pan requirements are close to the following standard pans you can expand them or modify them. See the following video:

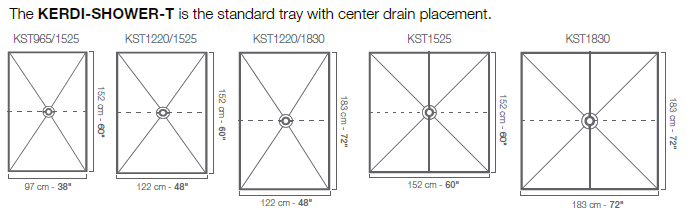

There are more shower pan sizes if the standard sizes will not work:

Item No.	Dimensions	Perimeter height	Drain placement
KST 965/1525	97 cm x 152 cm – 38″ x 60″	29 mm – 1-1/8″	center
KST 1220/1525	122 cm x 152 cm – 48″ x 60″	28 mm – 1-3/32″	center
KST 1220/1830	122 cm x 183 cm – 48″ x 72″	32 mm – 1-1/4″	center
KST 1525	152 cm x 152 cm – 60″ x 60″	30 mm – 1-3/16″	center
KST 1830	183 cm x 183 cm – 72″ x 72″	32 mm – 1-1/4″	center
KST 915 BF	97 cm x 97 cm – 36″ x 36″	22 mm – 7/8″	center
KST 915/1220 BF	91 cm x 122 cm – 36″ x 48″	25 mm – 1″	center
KST 1220 BF	122 cm x 122 cm – 48″ x 48″	25 mm – 1″	center
KST 965NA/ BF	97 cm x 97 cm – 38″ x 38″ Neo angle	26 mm – 1-1/32″	off-center
