Walls: Kerdi Board

Shower walls made with kerdi board:

If you have already built the shower wall studs but have not put the wall board up, it is a perfect time to decide if you want to put up traditional dry wall and waterproof it or simply use Kerdi board which has the waterproofing already attached and is much usually much easier to use than drywall.

The following videos will help with your decision-making process.

Intro to Kerdi Board

Using Kerdi Board on Shower Walls

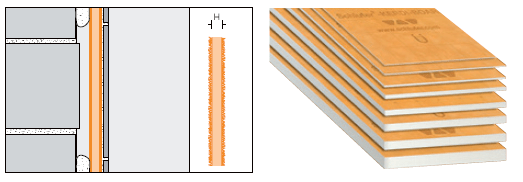

1/2″ Kerdi Board for Shower Walls

H = mm – in.	Item No.
Panel dimension: 122 cm x 81 cm – 48″ x 32″
12.5 – 1/2	KB 12 1220 812
Panel dimension: 122 cm x 162.5 cm – 48″ x 64″
12.5 – 1/2	KB 12 1220 1625
Panel dimension: 122 cm x 244 cm – 48″ x 96″
12.5 – 1/2	KB 12 1220 2440

Screws and Washers:

Size = mm – in.	Item No.	Pieces / Box
41 – 1-5/8	KB ZS 35 GT 32 Z	40 each
41 – 1-5/8	KB ZS 35 GT 32 Z 100	100 each

Kerdi Band:

Schluter®-KERDI-BAND is a waterproofing strip used to seal joints, corners, and fastener penetrations with the Schluter®-KERDI-BOARD
building panels, as well as butt joints and floor/ wall connections

Item No.	Width	Length	Thickness
KEBA 100/125/5M	125 mm – 5″	5 m – 16′ 5″	4 mil
KEBA 100/125/10M	125 mm – 5″	10 m – 33′	4 mil
KEBA 100/125	125 mm – 5″	30 m – 98′ 5″	4 mil
KEBA100/125/300	125 mm – 5″	300 m – 984′ 3″	4 mil
